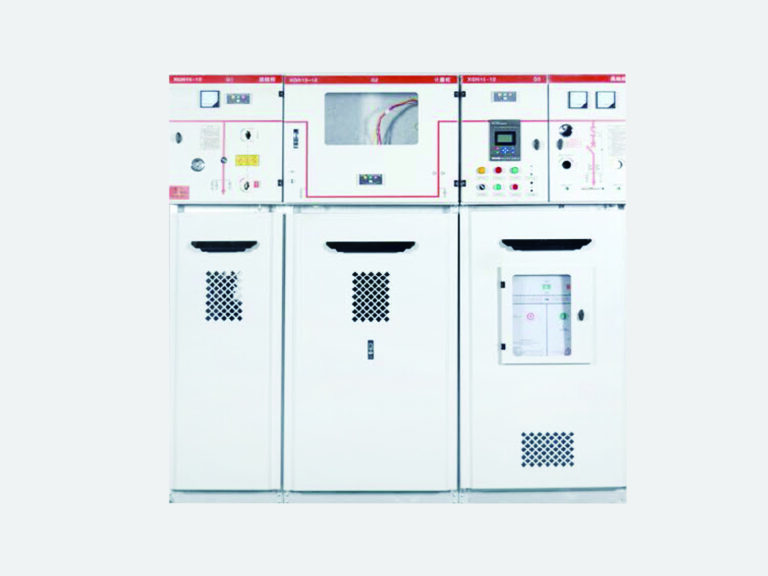

HXGN15-12 High Voltage Cabinet
HXGN15 – 12 high – voltage cabinet (hereinafter referred to as ring network cabinet/switchgear) is suitable for ring network power supply or radial power supply system with rated voltage of 12kV and rated current of 630A and below, and is especially suitable for installation in prefabricated substations as control and protection of power systems. This product is equipped with vacuum circuit breakers or load switches-fuse combination appliances with insulating shells, which has the characteristics of small size, light weight, simple operation, light operation force, reliable interlocking, and maintenance-free. It is a new generation of high-voltage switchgear required for urban power grid transformation and construction.
Regular Service Conditions
• Ambient air temperature: -25°C to +50°C
• Relative humidity: not more than 50% at the maximum temperature of +40°C; a higher relative humidity is permitted at lower temperatures, e.g., 90% at +20°C
• Clean air, free of corrosive and explosive gases, and free of dust conductive or harmful to insulation
• Location without significant shaking and impact vibration; to be installed vertically, with the tilt angle not exceeding 5 degrees
• Altitude: not more than 2000 meters • When the above conditions cannot be met by the user, the manufacturer should be consulted
